# Dynamic Programming
---

CS 137 // 2021-11-08

## Administrivia
- Daily exercises 9 and 10
    + Short exercises on graphs
    +
 DE9 was due today, but I forgot to discuss it in class on Wednesday, so I am allowing you to turn it in late
    +
 We will go over both DE9 and DE10 on Wednesday

# Questions
## ...about anything?

## Principle of Graph Problems
- Whenever possible, **build graphs**, not algorithms

# Greedy Algorithms

## Greedy Algorithms
- Recently we've looked at several **greedy** algorithms
-
 Greedy algorithms are of the "best thing first" variety and can be used to solve a wide variety of problems
-
 But it doesn't work for all problems...
    +
 We will see a few later in the course

# Dynamic Programming

## Dynamic Programming
- Dynamic programming is a technique for improving the efficiency of certain recursive algorithms
-
 The runtime improvement is due to cleverly caching the results of sub-problems to avoid solving them multiple times

## Why the name?
-
 "Programming" $\ne$ "writing programs"
    +
 Term was borrowed from schedule optimization and akin to "putting events into slots"
    +
 Or "filling in a table"
-
 "Dynamic" just means filling in the table *over time*

## What's the method?
1. Find a recursive solution to a problem
2.
 Determine the order to solve sub-problems
3.
 Populate a table of all the sub-problems, avoiding the need to solve sub-problems multiple times

## Fibonacci Numbers
- A classic recursive sequence is Fibonacci

$$
F_n = \begin{cases}
    1, &\text{ if }n=0\text{ or }1\\\\
    F_{n-1} + F_{n-2}, &\text{ otherwise}
\end{cases}
$$

## Recursive Implementation
- Implementing Fibonacci is trivial:
    ```py
    def fib(n):
        if n == 0 or n == 1:
            return 1
        else:
            return fib(n-1) + fib(n-2)
    ```

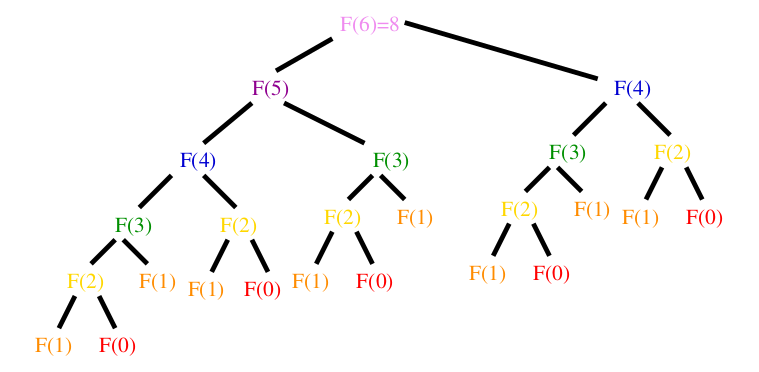

## Visualization
![Fibonacci Visualization](../../assets/images/fibonacci.png)

## Runtime?
- What is the runtime?
    +
 Exponential!
-
 How many **distinct** calls to `fib` are made?
    +
 Only $n$---which is not very many!
-
 How can we speed this up?

## Memoization
- One trivial way to give some performance improvement to a recursive algorithm is by creating a **cache** of recently computed results
-
 This is called **memoization**
-
 Memoization is technically not dynamic programming, but it is a quick way to get some performance improvements

## Memoized Fibonacci
- Here is the cached version of Fibonacci:
    ```py
    cache = {0:1, 1:1}
    def fib(n):
        if n not in cache:
            cache[n] = fib(n-1) + fib(n-2)

return cache[n]
    ```
-
 Runtime?
    +
 Only $n$ unique calls, so expected $O(n)$-time

## Python Memoization
- Memoization is so common, some programming languages include libraries that automate it for you:
    ```py
    from functools import cache

@cache
    def fib(n):
        if n == 0 or n == 1:
            return 1
        else:
            return fib(n-1) + fib(n-2)
    ```

## Fibonacci with Dynamic Programming

1.
 Create array $A$ with $n+1$ slots
2.
 Set $A[0] = 1$ and $A[1] = 1$
3.
 For $i = 2\ldots n$:
    1.
 $A[i] = A[i-1] + A[i-2]$
4.
 Return $A[n]$

## Fibonacci with DP
- Notice that our DP solution implements a recursive algorithm, yet it makes no recursive calls
-
 Instead, it is "filling in a table dynamically" in such a way that each distinct sub-problem is only evaluated once
-
 It is also *guaranteed* $O(n)$-time
    +
 With memoization it was *expected* $O(n)$-time

# Word Segmentation

## Word Segmentation
- Another problem that is commonly used in natural language processing is *word segmentation*
-
 **INPUT:** A string of letters $x\in\\{a,\ldots,z\\}^\*$ and a dictionary of words with $O(1)$ lookup time
-
 **OUTPUT:** `True` if $x$ is the concatenation of a sequence of legal words in the dictionary and `False` otherwise

## Word Segmentation
- For example:
    + `"thequickbrownfox"` can be segmented into `["the", "quick", "brown", "fox"]`
-
 However, the following has no segmentation:
    + `"abcdefg"`

## Recursive WS Solution
- Define $WS(x)$ to be the following algorithm:
    1.
 If $|x| = 0$, return `True`
    2.
 Otherwise, for $j = 1\ldots |x|$:
        1.
 If $WS(x_{1\ldots j})$ and $x_{j+1\ldots |x|} \in \text{dictionary}$
            1.
 Return `True`
    3.
 Return `False`

## WS Analysis
- What is the running time?
    +
 Exponential!
-
 How many distinct calls to $WS$?
    +
 Only $n$
    +
 $x_{1\ldots j}$ for $j = 1\ldots n$
-
 Let's try a DP approach!

## DP WS Solution
1. Initialize array VALID[0] = True
2.
 For $i = 1\ldots |x|$:
    1.
 VALID[i] = False
    2.
 For $j=0\ldots i-1$:
        1.
 If VALID[j] and $x_{j+1\ldots i} \in \text{dictionary}$, then set VALID[i] = True and break inner loop
3.
 Return VALID[$|x|$]

## DP WS Analysis
- Running time?
    +
 $O(n^2)$
