# Elementary Reductions
---

CS 137 // 2021-12-06

## Administrivia
- Exam 2 is returned on Gradescope
-
 Assignment 2 will be returned tomorrow
-
 Assignment 3 due on Wednesday

# Questions
## ...about anything?

# Exam 2 Debrief

# $P$ and $NP$

## The Class $P$
- $P$ is the set of computational problems that are **solvable** in polynomial time
- An algorithm runs in polynomial time if, in the worst case, it takes $O(n^k)$-time for some $k \ge 0$
- Intuitively, problems in $P$ are considered "easy" for a computer to solve

## The Class $NP$
- $NP$ stands for **nondeterministic polynomial time**
- Intuitively, $NP$ is the set of computational problems that are **verifiable** in polynomial time

## Finding Versus Checking
- **Finding** the two prime factors of a number is hard
    +
 $14369648346682547857$
-
 **Checking** if two numbers are the prime factors of another number is easy:
    +
 $1500450271$ and $9576890767$

## The Satisfiability Problem
- The **Boolean satisfiability problem**, $\text{SAT}$, involves checking if a Boolean formula $\Phi$ is satisfiable
- $\text{SAT}$ is $NP$-complete, which means:
    +
 $\text{SAT} \in NP$
    +
 $\text{SAT} \in P$ if and only if $P = NP$
-
 This means that if someone finds a fast solution to $\text{SAT}$, then we automatically get a fast solution to factor numbers!

# $NP$-Completeness

## $NP$-Completeness
- A problem is **$NP$-hard** if every problem in $NP$ is polynomially **reducible** to it
    +
 If a polynomial-time algorithm is found for an $NP$-hard problem, then it means that $P = NP$
-
 A problem is **$NP$-complete** if it is $NP$-hard and also a member of $NP$
    +
 $NP$-complete problems are the "hardest" in the class $NP$

## Reductions
- A problem $A$ is reducible to a problem $B$ if:
    +
 An instance of $A$ can be converted to an equivalent instance of $B$
    +
 Thus, if $B$ is solvable, then so is $A$

## Example: Convex Hull
- A common problem in computer vision is finding the **convex hull** of a set of points

![convex hull](../../assets/images/convex-hull-simple.png)

-
 Suppose I wanted to convince you that convex hull is at least as hard as **sorting numbers**
-
 One way to do this is by writing an algorithm that sorts numbers **using convex hull**

## Sorting to Convex Hull
- To do this, we need to transform every numeric sorting problem into a convex hull problem
-
 Suppose we're given a list of numbers:
    + $L = (x_1, x_2, \ldots, x_n)$
-
 We can convert this to a convex hull problem by creating a point $(x,x^2)$ for each $x\in L$
-
 Then finding the convex hull necessarily gives us the elements in order

## Sorting to Convex Hull
- Why does this work?

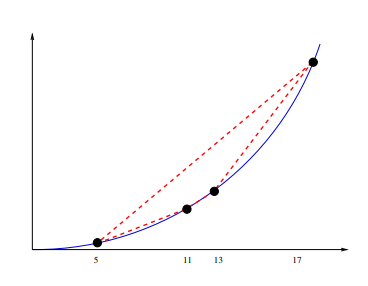

- Each point is mapped onto the parabola $y = x^2$ which is convex

![convex hull parabola](../../assets/images/convex-hull-parabola.png)

## Sorting to Convex Hull
- Thus, an algorithm to solve sorting could be:

```text
Given a list of numbers L:
  1. Create a list of points (x, x^2) for each x in L
  2. Use a convex hull solver to get the path of the hull
  3. Extract out the first component of each point to get
     a sorted list of L
  4. Return the sorted list
```

-
 If someone finds a fast solution to the convex hull problem, this immediately gives us a fast solution to sorting
-
 Thus we've shown that the convex hull problem is **at least as hard as** sorting

## Reductions
- **Fact:** If $A$ is an $NP$-hard problem and $A$ is polynomially reducible to $B$, then $B$ is also $NP$-hard
-
 To prove a problem is $NP$-hard, we just need to reduce a well-known $NP$-hard problem to it

![NP reduction diagram](../../assets/images/np-reduction-diagram.png)

# Example: Independent Set

## Independent Set to Clique
- An **independent set** is a fully disconnected set of vertices of an undirected graph
-
 A **clique** is a fully connected set of vertices of an undirected graph
-
 These problems are "inverses" of each other, so one can easily be reduced to the other

## Independent Set to Clique
![IS to Clique](https://www.researchgate.net/profile/Mikhail-Batsyn-2/publication/235890405/figure/fig4/AS:667066830974979@1536052534398/Maximum-clique-and-maximum-independent-set-problems.png)

## Independent Set to Clique
- An algorithm to solve independent set could be:

```text
Given an undirected graph G = (V,E):
  1. Create a graph G' = (V', E') with V = V'
  2. We include an edge (u,v) in E' if and only if
     the edge (u,v) is not in E
  3. Find the largest clique in G'
  4. Then that clique must be an independent set in
     the original graph G, so return it
```

-
 Converting G to G' takes polynomial time, so it is a polynomial reduction
-
 If independent set is NP-hard, then so is clique

# Example: Vertex Cover

## Example: Vertex Cover
- A **vertex cover** of an undirected graph is a set of vertices that "touches" every edge in the graph

![Vertex Cover](https://i.stack.imgur.com/7n7bv.jpg)

## Vertex Cover to IS

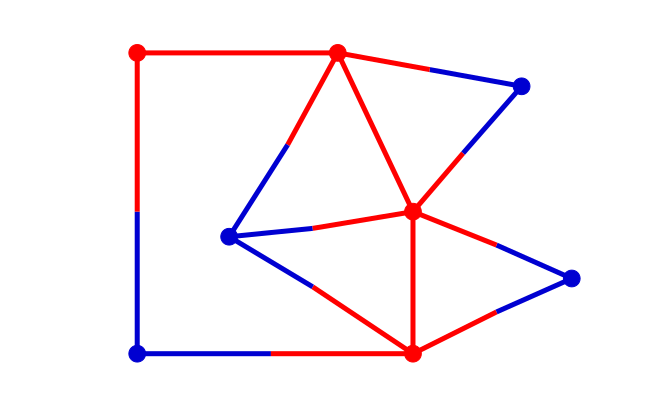

- Notice that every vertex cover (red) induces an independent set (blue)

![VC to IS](../../assets/images/vc-to-is.png)

-
 Thus, finding a small vertex cover is equivalent to finding a large independent set

## Vertex Cover to IS
- An algorithm to solve vertex cover could be:

```text
Given an undirected graph G = (V,E):
  1. Find the largest independent set, I, of of G
  2. Let V' be the set of vertices in V but not in I
  3. Since all the vertices in I are independent, V'
     must be a vertex cover
  4. Return V'
```

-
 Now we know that if vertex cover is is NP-hard (and it is), then so is independent set
-
 From our previous reduction, this also shows that clique is NP-hard
